Hollow Sections

HIGH FREQUENCY INDUCTION WELDED SQUARE AND RECTANGULAR TUBES

Structural tubes are produced from carbon steel on Automatic Tube Mill by High Frequency Induction Welding Process.

END USES

Structural and civil engineering, construction, scaffolding systems, poles, trusses, automobile

TESTS PERFORMED

Chemical, Physical, Mechaniccal as per Indian Standard Specification. Other as required.

SIZES

From 1/2" to 3"
Upto 12 mtrs
Wall Thickness : 0.060" to 0.0250"

PACKING

Bare bundles unless special packing is requested

PIPE ENDS

Plain
(Suare-cut or bevelled)

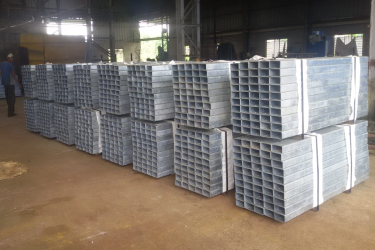

Awesome Image

WELDED SQUARE AND RECTANGULAR TUBES

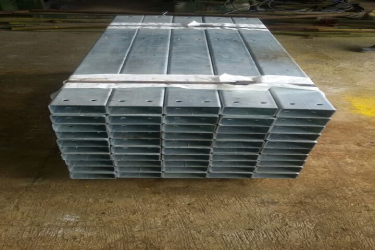

Awesome Image

WELDED SQUARE AND RECTANGULAR TUBES

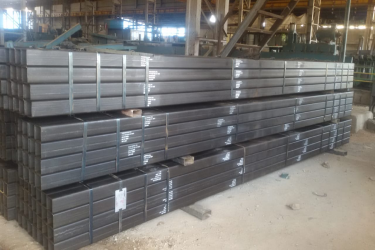

Awesome Image

WELDED SQUARE AND RECTANGULAR TUBES

RECTANGULAR STRUCTURAL TUBING GRADE A/B/C AND GRADE CSA G40.21-50W

Size Thickness Weight Weight
in. in. lbs/ft kg/ft
1 ¼" x ¾ 0.060 0.77 0.350
0.083 1.06 0.480
0.095 1.19 0.540
0.120 1.48 0.670
1 ½" x ¾ 0.060 0.904 0.410
0.083 1.234 0.560
0.095 1.411 0.640
0.120 1.741 0790
1" x 2" 0.060 1.146 0520
0.083 1.565 0710
0.095 1.785 0810
0.120 2.210 1.010
3" x 1" 0.060 1.543 0.700
0.083 2.116 0.960
0.095 2.424 1.100
0120 3.019 1.370
1.188 4.628 2.100
0.250 5.995 2.720
Size Thickness Weight Weight
in. in. lbs/ft kg/ft
3" x 1 ½ 0.120 3.350 1.520
0.188 4.950 2.250
0.250 6.250 2.830
3" x 2" 0.210 3.760 1.700
0.188 5.590 2.530
0.250 7.100 3.220
4" x 2" 0.083 3.218 1.460
0.095 3.680 1.670
0.120 4.570 2.070
0.188 6.860 3.110
0.250 8.800 3.990
4" x 3" 0.120 5.390 2.440
0.188 8.140 3.690
0.250 10.500 4.760
5" X 3" 0.120 6.210 2.810
0.188 9.410 4.270
0.250 12.200 5.530
Size Thickness Weight Weight
in. in. lbs/ft kg/ft
6" X 2" 0.100 5.22 2.370
0.120 6.210 2.810
0.188 9.410 4.270
0.250 12.200 5.530
6" X 3" 0.120 7.020 3.180
0.188 10.700 4.850
0.250 13.900 6.310
6" X 4" 0.120 7.830 3.560
0.188 12.000 5.430
0.250 15.600 7.080
8" X 4" 0.188 14.500 6.580
0.250 19.000 8.620

SQUARE STRUCTURAL TUBING

Size Thickness Weight Weight
in. in. lbs/ft kg/ft
5/8" X 5/8" 0.060 0.44 0.20
0.083 0.60 0.27
3/4" X 3/4" 0.060 0.57 0.26
0.083 0.79 0.36
1" x 1" 0.060 0.73 0.33
0.33 1.01 0.46
0.095 1.15 0.52
0.120 1.41 0.64
1.1/4" X 1.1/4" 0.060 0.97 0.44
0.083 1.32 0.60
0.095 1.50 0.68
0.120 1.85 0.84
1.1/2" X 1.1/2" 0.060 1.21 0.55
0.083 1068 0.76
0.095 1.79 0.81
0.120 2.21 1.00
0.188 3.14 1.42
0.250 3.89 1.76
Size Thickness Weight Weight
in. in. lbs/ft kg/ft
2" x 2" 0.060 1.54 0.70
0.083 2.12 0.96
0.095 2.38 1.08
0.120 3.02 1.37
0.188 4.53 2.05
0.250 5.40 2.45
2.½" x 2.½" 0.095 3.02 1.37
0.120 3.76 1.70
0.188 5.59 2.53
0.250 7.10 3.22
3" x 3" 0.083 3.44 1.56
0.095 3.68 1.67
0.120 4.57 2.07
0.188 6.86 3.11
0.250 8.80 3.99
3.½" x 3.½" 0.100 5.14 2.33
0.120 6.21 2.81
0.188 9.41 4.27
0.250 12.20 5.53
4" x 4" 0.100 5.14 2.33
0.120 6.21 2.81
0.188 9.41 4.27
0.250 12.20 5.53
6" x 6" 0.188 14.50 6.58
0.250 19.00 8.62

HIGH FREQUENCY INDUCTION WELDED SQUARE AND RECTANGULAR TUBES

Square and Rectangular tubes are produced as "cold-formed" from hot-rolled and semi-bright (pickled hot-rolled and cold-rolled) steel.

SIZES

– Outside diameter : 12mm x 12 mm to 150mm x 150 mm in square.
15mm x 25 mm to 200mm x 100 mm in rectangular
– Wall thickness : From 0.8 mm to 8.0 mm. – Length : Upto 12 mtrs

SURFACE FINISH

Black (self-coloured and semi-bright), Outside mill protective coating and Pre Galvanised.

PRODUCTION STANDARDS

Conforming to IS-4923 & IS-7138 equivalent international specification ASTM A500, BS-6323

INSPECTION

Mill's certificate or inspection by an independent organization authorized by the customer.

END USES

Civil engineering, construction, machinery, agricultural equipment, conveyors, cranes, marine, containers.

PACKING

Bare bundles unless special packing (jute, hessian cloth, etc) is requested.

TESTS PERFORMED

As required by
the standards.

PIPE ENDS

Plain

Nominal Dimension WALL THICKNESS / WEIGHT (kg/mtr)
Square 0.8 1.0 1.20 1.40 1.60 2.00 2.50 3.00 4.00 5.00 6.00 8.00
12 x 12 0.285 0.352 0.410 0.471 0.532 0.647
15 x 15 0.360 0.446 0.564 0.651 0.736 0.904
19 x 19 0.461 0.571 0.705 0.797 0.903 1.109
25 x 25 0.612 0.760 0.905 1.048 1.190 1.467 1.803 2.127
30 x 30 0.737 0.917 1.126 1.308 1.487 1.840 2.272 2.691 3.491
38 x 38 0.938 1.168 1.394 1.619 1.842 2.284 2.823 3.351 4.370
40 x 40 0.988 1.231 1.471 1.709 1.940 2.407 2.978 3.536 4.616
50 x 50 2.442 3.030 3.760 4.470 5.865
60 x 60 3.654 4.537 5.408 7.110
72 x 72 3.654 4.537 5.408 7.110
75 x 75 4.585 5.700 6.805 8.975
80 x 80 4.926 6.125 7.313 9.627 11.941 14.180
91.5 x 91.5 6.910 8.255 10.907 13.511 16.065
100 x 100 7.694 9.196 12.163 15.081 17.940
113 x 113 7.694 9.196 12.163 15.081 17.940
120 x 120 7.694 9.196 12.163 15.081 17.940
125 x 125 11.550 15.302 19.004 22.658 29.815
150 x 150 13.905 18.441 22.929 27.366 36.094
Rectangular
15 x 25 0.486 0.603 0.739 0.855 0.969 1.190
15 x 35 0.612 0.760 0.905 1.048 1.190 1.465 1.803 2.127
20 x 30 0.612 0.760 0.885 1.019 1.161 1.432 1.776 2.097
20 x 40 0.737 0.917 1.092 1.265 1.436 1.775 2.188 2.589 3.350
25 x 50 0.926 1.152 1.377 1.599 1.830 2.265 2.805 3.330 4.340
40 x 60 2.448 3.030 3.760 4.475 5.865
40 x 80 3.655 4.535 5.408 7.110
50 x 100 4.586 5.703 6.806 8.976
145 x 82 4.586 5.703 6.806 8.976
122 x 61 4.586 5.703 6.806 8.976
125 x 75 4.586 5.703 6.806 8.976
100 x 60 4.925 6.125 7.313 9.652 11.941 14.181
100 x 80 6.910 8.255 10.907 13.511 16.065
120 x 80 7.694 9.196 12.163 15.081 17.940
150 x 100 11.550 15.302 19.004 22.658 29.815
200 x 100 13.905 18.441 22.929 27.366 36.094

The above range is only indicative. Dimension & Thickness other than specified can also be supplied as required.



Tolerances :

Dimensions - ± 1%

Corner Radius + 3T - Max

Thickness - ± 8%

Squarness of Corners - 90° + 2°

Flatness - ± 1%
